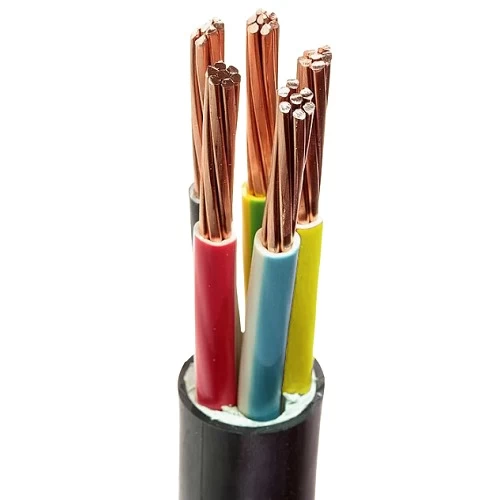

4mm 5 Core Electrical Cable 300/500V, Stranded Copper Conductor, PVC Insulation and Sheath | Nohascom

Stranded copper electrical cable (CU/PVC/PVC), 5 core, 4mm2 cross-sectional area, low voltage 300/500V, It has flame and melting resistant properties, which reduces the risk of fire in the event of an electrical short circuit. From Nohascom Company, red, yellow, blue, black, yellow/green.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 5
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of Wires: 7
• Wire Diameter: 0.85 mm
• Nominal Insulation Thickness: 0.8
• Thickness of Inner Covering: 0.6 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 14.2 mm
• Weight: 410 kg/k
• Insulation Color: (Red, Yellow, Blue, Black, Yellow/Green)
• Standard: SASO IEC 60227-4
