4mm 2 Core Stranded Copper Flat Electric Cable 300/500V, PVC 85°C Insulation, Gray Color, 100 meter | Saudi Cable Company

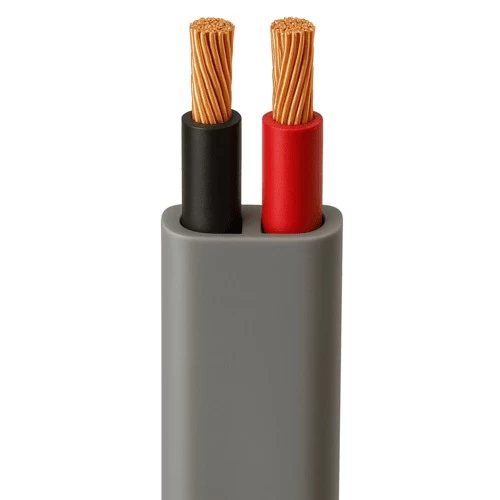

Stranded copper electrical flat cable (CU/PVC/PVC), 2 core, 4mm² cross-sectional area, insulated with materials that withstand temperatures up to 85°C. The grey jacket offers protection against environmental impacts, making it suitable for industrial areas. Produced by Saudi Cable Company.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 4mm2
• Number of Wires: 7
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.0 mm
• Overall Diameter: 11.5 x 7.2 mm
• Weight: 142 kg/km
• Length: 100 meter / Coil
• Insulation Color: (Red, Black)
• Sheath Color: Grey
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CGF2-06H
