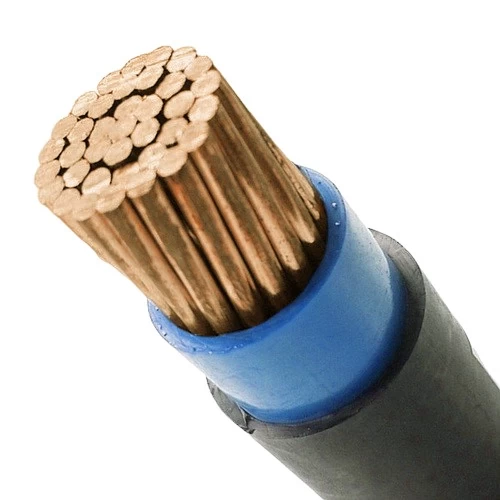

4mm 0.6/1kV, Single Core Electric Cable, Stranded Copper Wire, PVC Insulated, Blue Color, 2000 meter | RESCAB

Stranded copper cable (CU/PVC/PVC), single core, 0.6/1 kV, 4mm2 size, produced by Red Sea Cables (RESCAB) Company, it is an ideal solution for electrical power transmission, offering cost efficiency and reliable performance.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 8 mm
• Max DC Conductor Resistance at 20°C: 4.61 ohm/km
• Weight: 102 kg/km
• Standard Length: 2000 meters
• Phase Core Color: Blue
• Standard: BS 5467, 6346 Latest
