3×185 + 95mm 0.6/1kV, 3.5Core Cable, Stranded Copper Wire, PVC Insulated, 250 meter Length | RESCAB

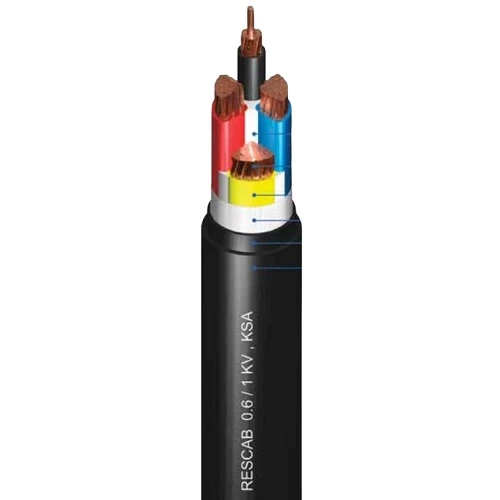

Unarmored stranded copper electrical cable (CU/PVC/PVC), 3 core + neutral line, 3×185 + 95mm2 size conductor, 0.6/1kV, produced by Red Sea Cables (RESCAB) Company, recommended for indoor and outdoor applications in environments with no risk of mechanical damage.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 3.5 Core (3 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 3cx185 mm2 ) + 95mm2
• Number of Phase Wires: 37
• Number of Neutral Wires: 19
• Nominal Insulation Thickness of Phase: 2.0 mm
• Nominal Insulation Thickness of Neutral: 1.6 mm
• Nominal Sheath Thickness: 2.6 mm
• Approx Overall Diameter: 53 mm
• Max DC Conductor Resistance at 20°C (Ph): 0.0991 ohm/km
• Max DC Conductor Resistance at 20°C (Ne): 0.193 ohm/km
• Weight: 7580 kg/km
• Standard Length : 250 meters
• Phase Core Colors: (Red, Yellow, Blue, Black)
• Standard: IEC 60502-1
