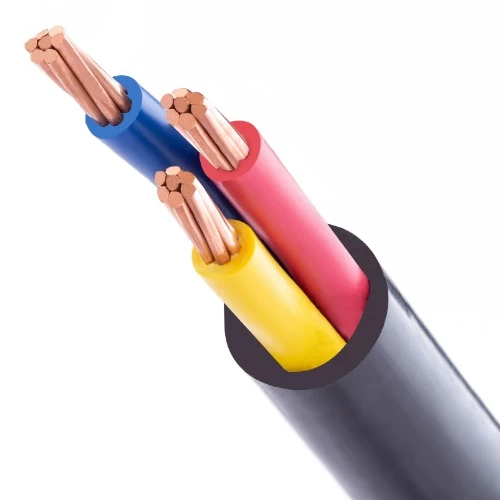

35mm 3 Core Electrical Cable, 300/500V, Stranded Copper Conductor, PVC Insulated | Nohascom

Stranded copper electrical cable (CU/PVC/PVC), 3 core, 35mm2 cross-sectional area, low voltage 300/500V, It features a durable and strong design that protects the copper conductors from mechanical damage, ensuring stable long-term performance. Red, yellow and blue color, from Nohascom Company.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 35 mm2
• Number of Wires: 7
• Wire Diameter: 2.57 mm
• Nominal Insulation Thickness: 1.2
• Thickness of Inner Covering: 1 mm
• Nominal Sheath Thickness: 1.6 mm
• Overall Diameter: 25.5 mm
• Weight: 1430 kg/k
• Insulation Color: (Red, yellow, blue)
• Standard: SASO IEC 60227-4
