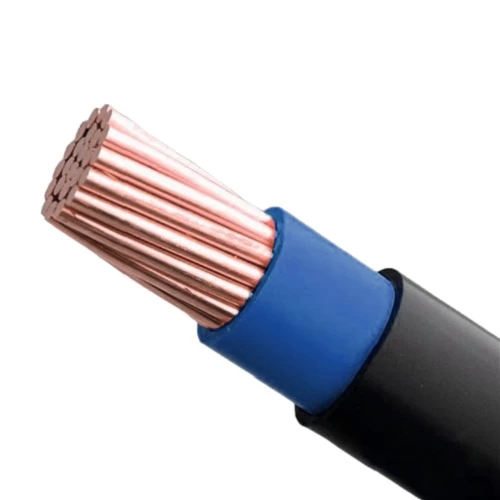

35mm 0.6/1kV Single Core Electric Cable, Stranded Copper Conductor, PVC Insulated and Sheathed, Blue Color, 1000 meter | BAHRA

Unarmored stranded copper electric cable (CU/PVC/PVC), 1C, 35mm2 size conductor, produced by BAHRA Cables company, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 35 mm2
• Number of wires: 7
• Nominal Insulation Thickness:1.2 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 12.7 mm
• Weight: 443 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Blue
• Standard: BS 5467 (A:2008)
