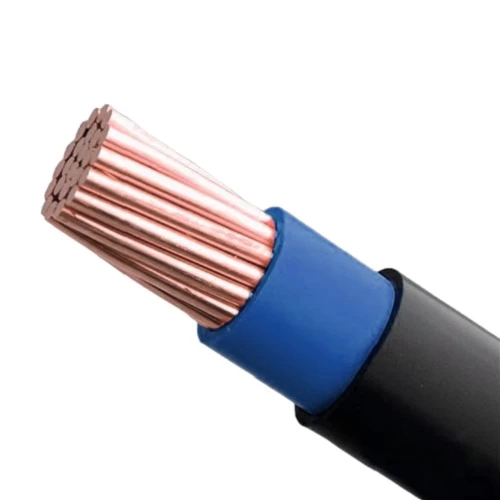

300mm 0.6/1kV 1C Electrical Cable, Copper Conductor, PVC Insulation and Sheath, Blue Color Stranded, 1000 M Length | BAHRA

Unarmored stranded copper power cable (CU/PVC/PVC), single core, 300 sq mm size conductor, produced by BAHRA Cables company, it suitable for indoor and outdoor applications where there is no risk of mechanical damage.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 300 mm2
• Number of wires: 61
• Nominal Insulation Thickness: 2.4 mm
• Nominal Sheath Thickness: 1.9 mm
• Approx Overall Diameter: 31.4 mm
• Weight: 3240 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Blue
• Standard: BS 5467 (A:2008)
