3 Phase 6mm Stranded Copper Power Cable, 0.6/1kV, PVC Insulated | Al Fanar

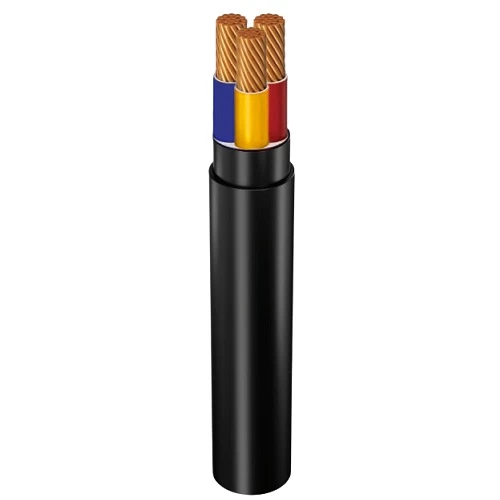

3 core stranded copper power cable (CU/PVC/PVC/PVC), The outer jacket provides additional protection for the cable from shock, friction and abrasion, produced by Al Fanar Company, size 6 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 6 mm2
• Max DC Conductor Resistance at 20°C: 3.0800 ohm/km
• Max AC Conductor Resistance at 70°C: 3.6853 ohm/km
• Current Rating Laid in Ground: 48 Ampere
• Current Rating Laid In Ducts: 33 Ampere
• Current Rating Laid in Free Air: 40 Ampere
• Approx Overall Diameter: 16.7 mm
• Weight: 480 kg/km
• Phase Core Color: (red, yellow, blue)
• Standard: IEC 60502-1
