3 Phase 25mm Stranded Copper Power Cable, 0.6/1kV, PVC Insulated | Al Fanar

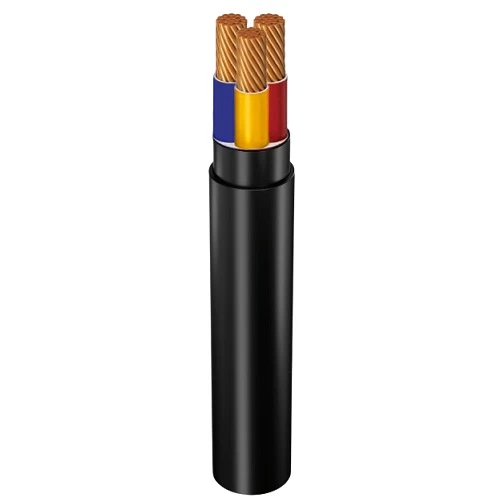

3 core stranded copper power cable (CU/PVC/PVC/PVC), The outer sheath is highly resistant to water and moisture, making it suitable for indoor and outdoor uses where there is no risk of mechanical damage, produced by Al Fanar Company, size 25 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 25 mm2
• Max DC Conductor Resistance at 20°C: 0.7270 ohm/km
• Max AC Conductor Resistance at 70°C: 0.8703 ohm/km
• Current Rating Laid in Ground: 105 Ampere
• Current Rating Laid In Ducts: 75 Ampere
• Current Rating Laid in Free Air: 98 Ampere
• Approx Overall Diameter: 23.6 mm
• Weight: 1120 kg/km
• Phase Core Color: (red, yellow, blue)
• Standard: IEC 60502-1
