3 Phase 16mm Stranded Copper Power Cable, 0.6/1kV, PVC Insulated | Al Fanar

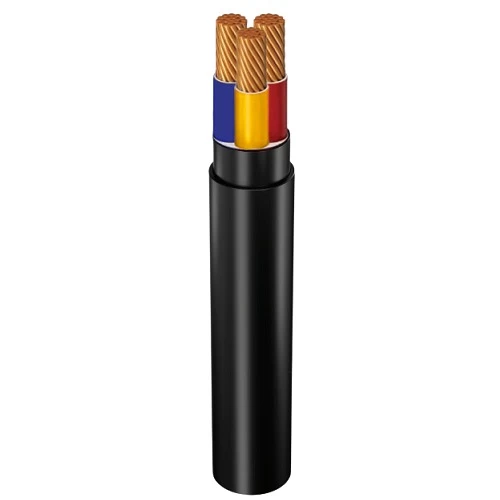

3 core stranded copper power cable (CU/PVC/PVC/PVC), size 16 mm2, According to the International Electrotechnical Commission (IEC 60502-1) standard. PVC cables are a popular and effective choice for electrical power delivery in various applications, produced by Al Fanar Company.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 16 mm2
• Max DC Conductor Resistance at 20°C: 1.1500 ohm/km
• Max AC Conductor Resistance at 70°C: 1.3763 ohm/km
• Current Rating Laid in Ground: 81 Ampere
• Current Rating Laid In Ducts: 57 Ampere
• Current Rating Laid in Free Air: 72 Ampere
• Approx Overall Diameter: 20.6 mm
• Weight: 790 kg/km
• Phase Core Color: (red, yellow, blue)
• Standard: IEC 60502-1
