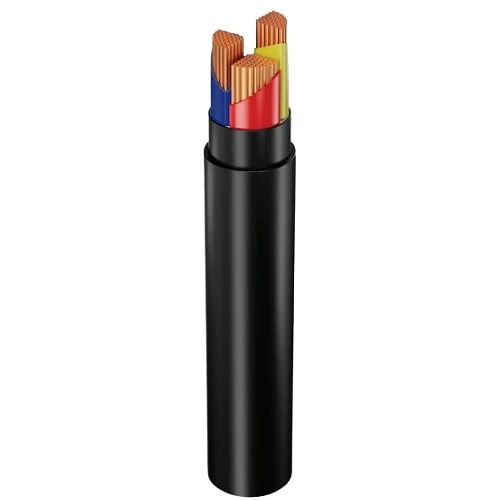

3 Phase 120mm Stranded Copper Power Cable, 0.6/1kV, PVC Insulated | Al Fanar

3 core stranded copper power cable (CU/PVC/PVC/PVC), Insulation color (red, yellow, blue), PVC cables are characterized by durability, economical cost, and reliable performance, produced by Al Fanar Company, size 120 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Sectoral Stranded (sm)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 120 mm2
• Max DC Conductor Resistance at 20°C: 0.1530 ohm/km
• Max AC Conductor Resistance at 70°C: 0.1856 ohm/km
• Current Rating Laid in Ground: 231 Ampere
• Current Rating Laid In Ducts: 178 Ampere
• Current Rating Laid in Free Air: 235 Ampere
• Approx Overall Diameter: 36.4 mm
• Weight: 4090 kg/km
• Phase Core Color: (red, yellow, blue)
• Standard: IEC 60502-1
