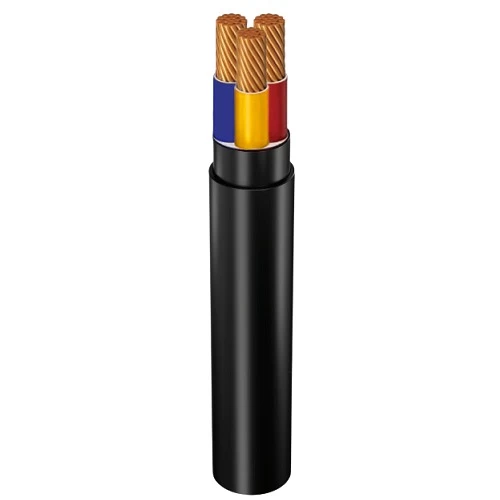

3 Phase 1.5mm Stranded Copper Power Cable, 0.6/1kV, PVC Insulated | Al Fanar

3 core stranded copper power cable (CU/PVC/PVC/PVC), According to the International Electrotechnical Commission (IEC 60502-1) standard. PVC cables are a popular and effective choice for electrical power delivery in various applications, produced by Al Fanar Company, size 1.5 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 1.5 mm2
• Max DC Conductor Resistance at 20°C: 12.1000 ohm/km
• Max AC Conductor Resistance at 70°C: 14.4777 ohm/km
• Current Rating Laid in Ground: 23 Ampere
• Current Rating Laid In Ducts: 15 Ampere
• Current Rating Laid in Free Air: 18 Ampere
• Approx Overall Diameter: 12.4 mm
• Weight: 230 kg/km
• Phase Core Color: (red, yellow, blue)
• Standard: IEC 60502-1
