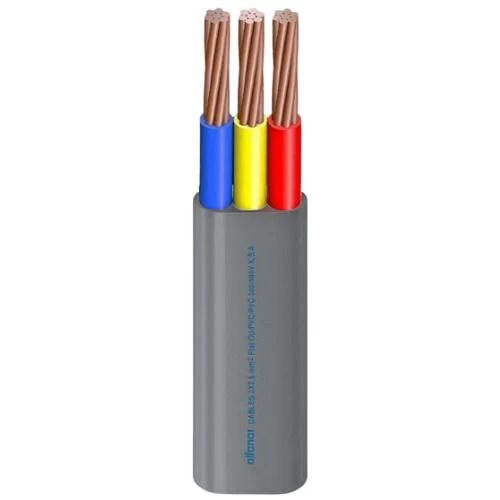

3 Core Stranded Copper Flat Cable, 4sq mm Size, 300/500 Voltage Rating, PVC Insulated and Sheathed | Alfanar

Stranded electrical copper flat cable three core (CU/PVC/PVC), 4 mm2 cross-sectional area, low voltage 300/500V, phase core color (red, yellow, blue), available in a variety of sizes and colors with highest quality and best prices, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed stranded copper conductor class 2 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of Wires: 7
• Wire Diameter: 0.85 mm
• Nominal Insulation Thickness: 0.8 mm
• Thickness of Inner Covering: 1.1 mm
• Approx. Overall Diameter: 6.4 × 14.7 mm
• Weight: 225 kg/km
• Standard Length: 100, 80, 50, 40 yard coil (other lengths available upon request)
• Insulation Color: (Red, Yellow, Blue)
• Standard: BS 6004
