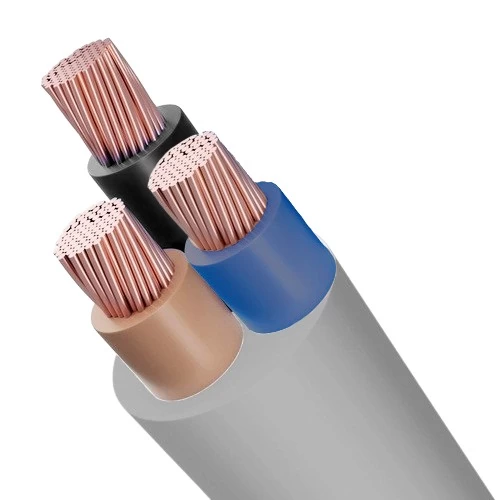

3 Core Stranded Copper Electric Cable, 4mm2 Size, 300/500 Rated Voltage, PVC Insulation | Riyadh Cables

3 core stranded electrical copper cable (CU/PVC/PVC), 4 mm2 cross-sectional area, 300/500V, the first layer provides excellent electrical insulation, insulation color is brown, blue and black, produced by Riyadh Cables Company.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 4 mm
• Number of Wires: 7
• Approx Conductor Diameter: 2.55 mm
• Insulation Thickness: 0.8
• Sheath Thickness: 1.2 mm
• Overall Diameter: 13.5 mm
• Weight: 270 kg/km
• Max DC Conductor Resistance at 20°C: 4.61 ohm/km
• Standard Packing Length: 100 meter coil
• Insulation Color: (Brown, Blue, Black)
• Outer Sheath Color: Gray
• Standards: IEC 60502, SSA 1450
