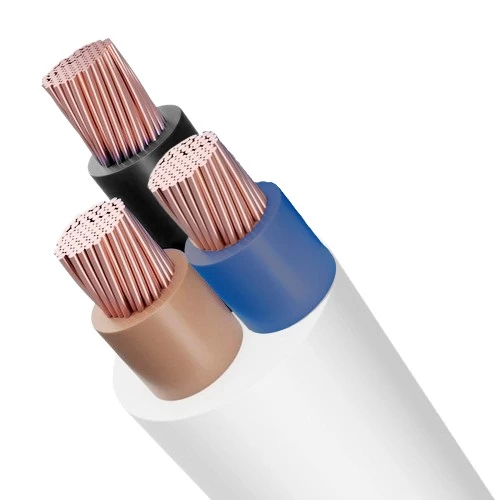

3 Core Flexible Copper Cable, 1mm Size, 300/500 Rated Voltage, PVC Insulated | Riyadh Cables

3 core flexible copper cable, 1 mm size conductor, 300/500 volts, PVC insulated, PVC sheathed, insulation color is brown, blue and black, available in a variety of sizes and colors with highest quality and best prices, produced by Riyadh Cables Company.

• Cable Type: H05VV-F
• Conductor: Flexible Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage Rating: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 1 mm
• Number of Wires: 29
• Wire Diameter: 0.20 mm
• Approx Conductor Diameter: 1.3 mm
• Insulation Thickness: 0.6 mm
• Sheath Thickness: 0.8 mm
• Overall Diameter: 8 mm
• Weight: 80 kg/km
• Max DC Conductor Resistance at 20°C: 19.5 ohm/km
• Packing: 100 meter
• Insulation Color: (Blue, Brown, Black)
• Outer Sheath Color: White
• Standards: BS 6500, IEC 60227
