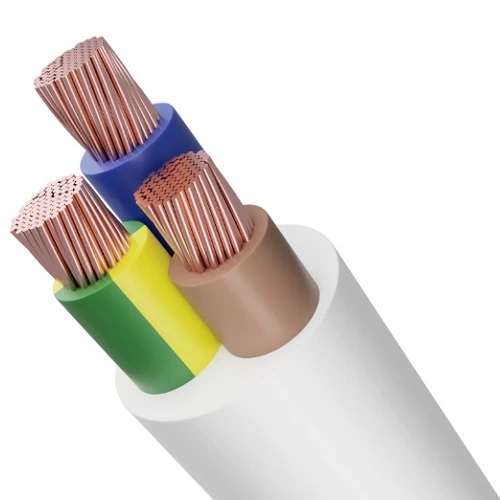

3 Core Electrical Cable 2.5mm Size, 300/500 Volts, Flexible Copper Conductor, PVC Insulated | Riyadh Cables

3 core flexible copper cable, 2.5 mm size conductor, 300/500 volts, PVC insulated, insulation color is brown, blue and yellow/green, PVC sheathed, available in a variety of sizes and colors with highest quality and best prices, produced by Riyadh Cables Company.

• Cable Type: H05VV-F
• Conductor: Flexible Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage Rating: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 2.5 mm
• Number of Wires: 46
• Wire Diameter: 0.25 mm
• Approx Conductor Diameter: 2.1 mm
• Insulation Thickness: 0.8 mm
• Sheath Thickness: 1.1 mm
• Overall Diameter: 11.4 mm
• Weight: 155 kg/km
• Max DC Conductor Resistance at 20°C: 7.98 ohm/km
• Packing: 100 meter
• Insulation Color: (Blue, Brown, Yellow/Green)
• Outer Sheath Color: White
• Standards: BS 6500, IEC 60227
