3 Core Cable 1.5mm Size, 300/500V, Stranded Copper Conductor, PVC Insulation | Riyadh Cables

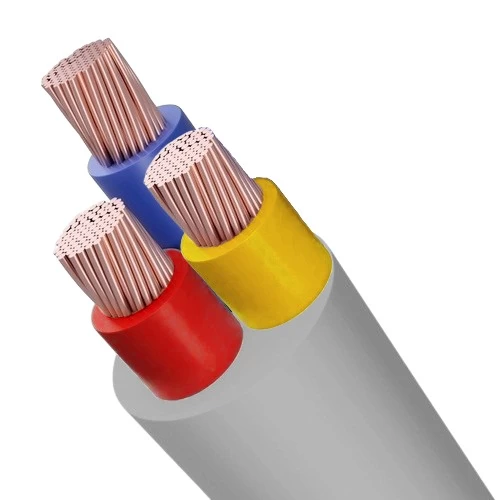

3 core stranded electrical copper cable (CU/PVC/PVC), 1.5 mm2 cross-sectional area, 300/500V, insulated and sheathed with high quality PVC compound (polyvinyl chloride), insulation color is red, blue and yellow, produced by Riyadh Cables Company.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 1.5 mm
• Number of Wires: 7
• Approx Conductor Diameter: 1.50 mm
• Insulation Thickness: 0.7
• Sheath Thickness: 1.2 mm
• Overall Diameter: 11 mm
• Weight: 145 kg/km
• Max DC Conductor Resistance at 20°C: 12.1 ohm/km
• Standard Packing Length: 100 meter coil
• Insulation Color: (Red, Blue, Yellow)
• Outer Sheath Color: Gray
• Standards: IEC 60502, SSA 1450
