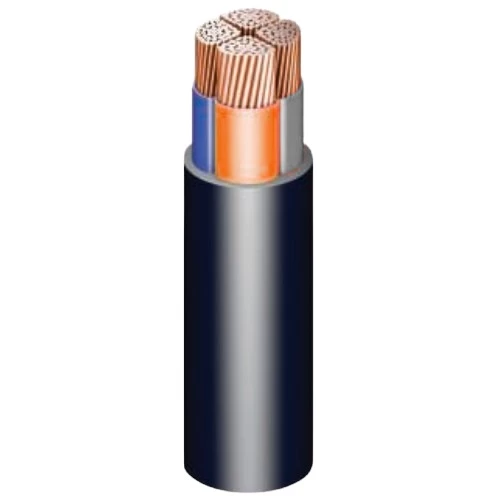

3.5 Core Stranded Copper Cable 3×70+35mm 600/1000V, PVC Insulated | Riyadh Cables

Stranded copper power cable (CU/PVC/PVC) 3 phase + neutral line, Color (blue, brown, black, grey). It has many uses, the most important of which are fixed installations, whether internal or external. It is characterized by its high heat resistance, Size 3×70+35 mm2, produced by Riyadh Cables Company.

• Insulation Material: PVC (Polyvinyl Chloride)
• Outer jacket : PVC
• Voltage : 600/1000 volts
• Phase Conductor Shape: Sectoral Stranded (sm)
• Neutral Conductor Shape: Sectoral Stranded (sm)
• Number of Cores: 3 Core + Neutral Line
• Conductor Size (Cross-Sectional Area): ( 3cx70 mm2 ) + 35mm2
• Number of Phase Wires: 12
• Number of Neutral Wires: 7
• Approx Diameter of Neutral Conductor: 7.44 mm
• Nominal Insulation Thickness of Phase: 1.4 mm
• Nominal Insulation Thickness of Neutral: 1.2 mm
• Nominal Sheath Thickness: 2 mm
• Approx Overall Diameter: 35 mm
• Weight: 2950 kg/km
• Length : 500 meters
• Phase Core Colors: (blue, brown, black, grey)
• Standard: IEC 60502-1
