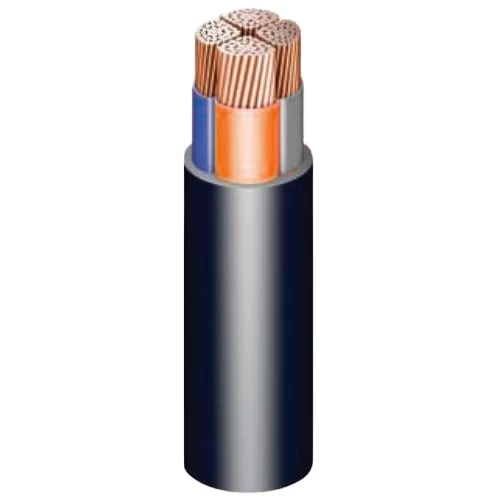

3.5 Core Stranded Copper Cable 3×35+16mm 600/1000V, PVC Insulated | Riyadh Cables

Stranded copper power cable (CU/PVC/PVC) 3 phase + neutral line, Low voltage 600/1000V, durable and long lasting, also has a high melting point, insulated with two layers of high quality PVC, Size 3×35+16 mm2, produced by Riyadh Cables Company.

• Insulation Material: PVC (Polyvinyl Chloride)
• Outer jacket : PVC
• Voltage : 600/1000 volts
• Phase Conductor Shape: Sectoral Stranded (sm)
• Neutral Conductor Shape: Sectoral Stranded (sm)
• Number of Cores: 3 Core + Neutral Line
• Conductor Size (Cross-Sectional Area): ( 3cx35 mm2 ) + 16mm2
• Number of Phase Wires: 6
• Number of Neutral Wires: 7
• Approx Diameter of Neutral Conductor: 5.03 mm
• Nominal Insulation Thickness of Phase: 1.2 mm
• Nominal Insulation Thickness of Neutral: 1 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 27 mm
• Weight: 1600 kg/km
• Length : 1000 meters
• Phase Core Colors: (blue, brown, black, grey)
• Standard: IEC 60502-1
