3.5 Core Stranded Copper Cable 3×25+16mm 600/1000V, PVC Insulated | Riyadh Cables

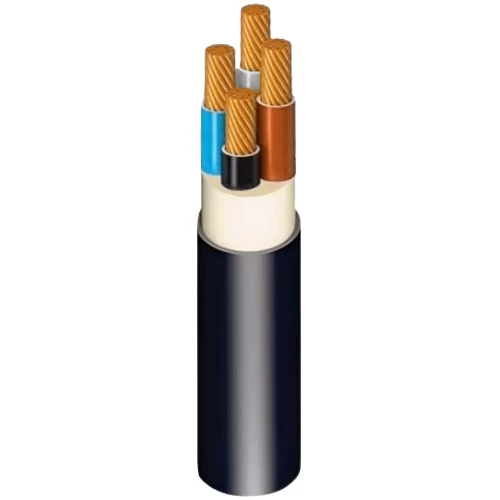

Stranded copper power cable (CU/PVC/PVC) 3 phase + neutral line, Available in different shapes and sizes with the highest quality and best prices to suit various applications and needs, Size 3×25+16 mm2, produced by Riyadh Cables Company.

• Insulation Material: PVC (Polyvinyl Chloride)
• Outer jacket : PVC
• Voltage : 600/1000 volts
• Phase Conductor Shape: Round Stranded (rm)
• Neutral Conductor Shape: Round Stranded (rm)
• Number of Cores: 3 Core + Neutral Line
• Conductor Size (Cross-Sectional Area): ( 3cx25 mm2 ) + 16mm2
• Number of Phase Wires: 7
• Number of Neutral Wires: 7
• Approx Diameter of Phase Conductor: 6.3 mm
• Approx Diameter of Neutral Conductor: 5.03 mm
• Nominal Insulation Thickness of Phase: 1.2 mm
• Nominal Insulation Thickness of Neutral: 1 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 27 mm
• Weight: 1450 kg/km
• Length : 1000 meters
• Phase Core Colors: (blue, brown, black, grey)
• Standard: IEC 60502-1
