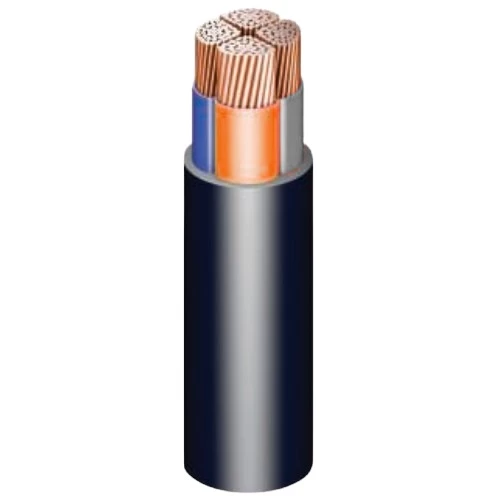

3.5 Core Stranded Copper Cable 3×185+95mm 600/1000V, PVC Insulated | Riyadh Cables

Stranded copper power cable (CU/PVC/PVC) 3 phase + neutral line, It has a high ability to withstand high temperatures, insulated with polyvinyl chloride, Size 3×185+95 mm2, produced by Riyadh Cables Company.

• Insulation Material: PVC (Polyvinyl Chloride)
• Outer jacket : PVC
• Voltage : 600/1000 volts
• Phase Conductor Shape: Sectoral Stranded (sm)
• Neutral Conductor Shape: Sectoral Stranded (sm)
• Number of Cores: 3 Core + Neutral Line
• Conductor Size (Cross-Sectional Area): ( 3cx185 mm2 ) + 95mm2
• Number of Phase Wires: 30
• Number of Neutral Wires: 19
• Approx Diameter of Neutral Conductor: 12.40 mm
• Nominal Insulation Thickness of Phase: 2 mm
• Nominal Insulation Thickness of Neutral: 1.6 mm
• Nominal Sheath Thickness: 2.6 mm
• Approx Overall Diameter: 52 mm
• Weight: 7425 kg/km
• Length : 250 meters
• Phase Core Colors: (blue, brown, black, grey)
• Standard: IEC 60502-1
