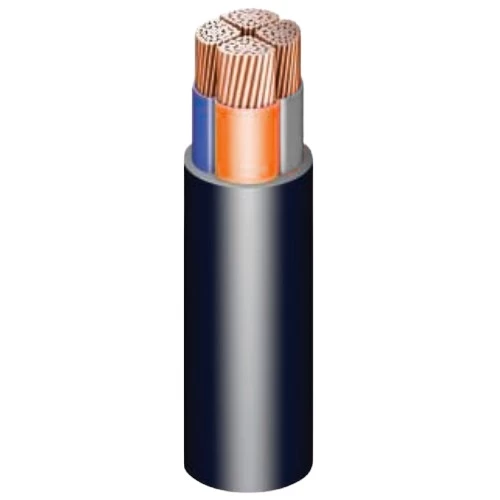

3.5 Core Stranded Copper Cable 3×120+70mm 600/1000V, PVC Insulated | Riyadh Cables

Stranded copper power cable (CU/PVC/PVC) 3 phase + neutral line, An insulator is used to prevent leakage of electricity or current around and for protection, it is used to conduct electrical current, Size 3×120+70 mm2, produced by Riyadh Cables Company.

• Insulation Material: PVC (Polyvinyl Chloride)
• Outer jacket : PVC
• Voltage : 600/1000 volts
• Phase Conductor Shape: Sectoral Stranded (sm)
• Neutral Conductor Shape: Sectoral Stranded (sm)
• Number of Cores: 3 Core + Neutral Line
• Conductor Size (Cross-Sectional Area): ( 3cx120 mm2 ) + 70mm2
• Number of Phase Wires: 18
• Number of Neutral Wires: 19
• Approx Diameter of Neutral Conductor: 10.60 mm
• Nominal Insulation Thickness of Phase: 1.6 mm
• Nominal Insulation Thickness of Neutral: 1.4 mm
• Nominal Sheath Thickness: 2.3 mm
• Approx Overall Diameter: 43 mm
• Weight: 4975 kg/km
• Length : 500 meters
• Phase Core Colors: (blue, brown, black, grey)
• Standard: IEC 60502-1
