25 sq mm Two Core Stranded Copper Cable 0.6/1kV, PVC 85°C Insulation, Black Sheath, Length 1000 meter | Saudi Cables Company

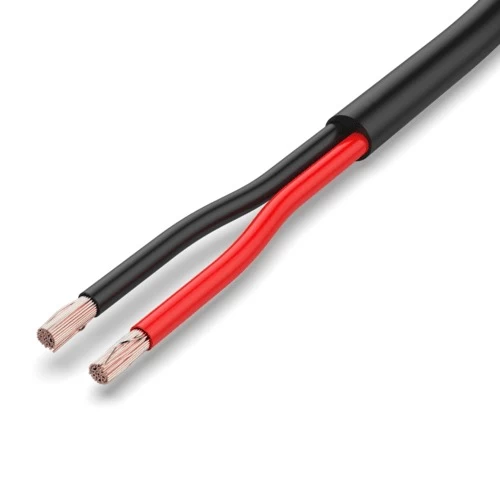

Unarmored stranded copper power cable (CU/PVC/PVC), two cores, 25mm², low voltage 0.6/1kV, Suitable for light domestic wiring and lighting. Provides reliable performance. Produced by Saudi Cables Company.

• Conductor: Stranded Copper
• Insulation Material: Heat resistive PVC type 5 to BS6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 0.6/1kV
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 25 mm2
• Number of wires: 6
• Nominal Insulation Thickness: 1.2 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 23.6 mm
• Weight: 1005 kg/km
• Standard Length: 1000 meters
• Insulation Colors: Red, Black
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: EJH2-10A
