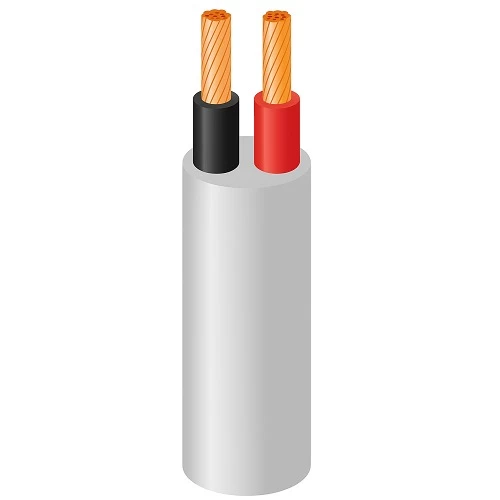

25 mm Two Core Stranded Copper Electrical Cable 300/500V, PVC 85°C Insulation, Gray Color, 1000 meter/Coil | Saudi Cable Company

Stranded copper two-core cable (CU/PVC/PVC), 25 sq mm, 300/500V, gray sheath, insulated and sheathed with PVC 85°C. Suitable for fixed wiring in factories and homes, ensuring long-term protection.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 25mm2
• Number of Wires: 7
• Nominal Insulation Thickness: 1.2 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 21.9 mm
• Weight: 897 kg/km
• Length: 1000 meter / Coil
• Insulation Color: (Red, Black)
• Sheath Color: Grey
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CGH2-10H
