25 mm 0.6/1kV Single Core Power Cable, Stranded Wire Copper , PVC Insulation, Black Color, 1000 M Length | BAHRA

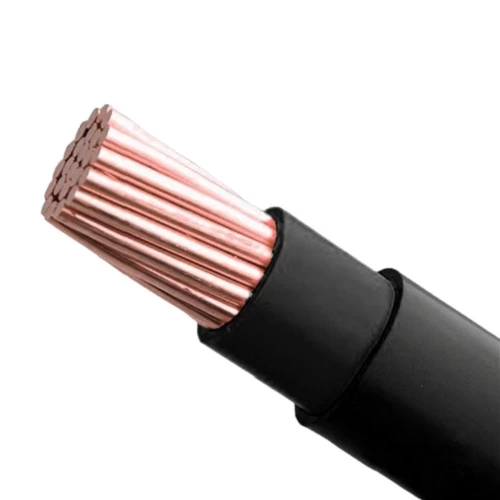

Unarmored stranded copper power electrical cable (CU/PVC/PVC), single core, 25mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 25 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.2 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 11.6 mm
• Weight: 334 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Black
• Standard: IEC 60502-1
