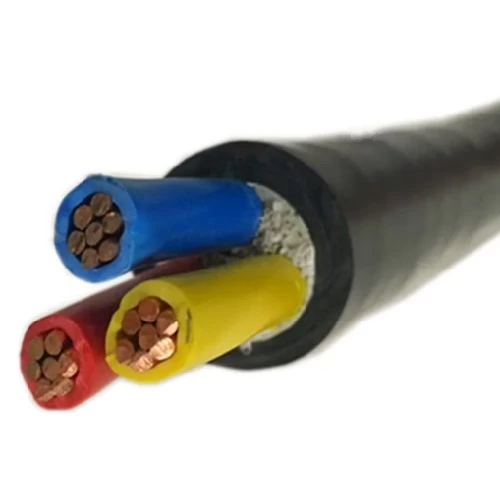

240 sq mm Three Core Cable 0.6/1kV CU/PVC/PVC, Stranded Copper, 250 meter/Drum | BAHRA

Cable 240 sq mm Three Core 0.6/1kV CU/PVC/PVC, Stranded Copper, 250 meter/Drum, The cable is available in a variety of colors and sizes, offering the best prices and highest quality, Produced by BAHRA Cables Company.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 3 Core
• Conductor Size (Cross-Sectional Area): 240 mm2
• Number of Wires: 61
• Nominal Insulation Thickness: 2.2 mm
• Nominal Sheath Thickness: 2.7 mm
• Approx Overall Diameter: 59.1 mm
• Weight: 8020 kg/km
• Standard Length: 250 meters
• Phase Core Colors: Red, Yellow, Blue
• Standard: IEC 60502-1
