2 Core Flexible Copper Electric Cable, 1.5mm2 Size, 300/500 Voltage Rating, PVC Insulated and Sheathed | Riyadh Cables

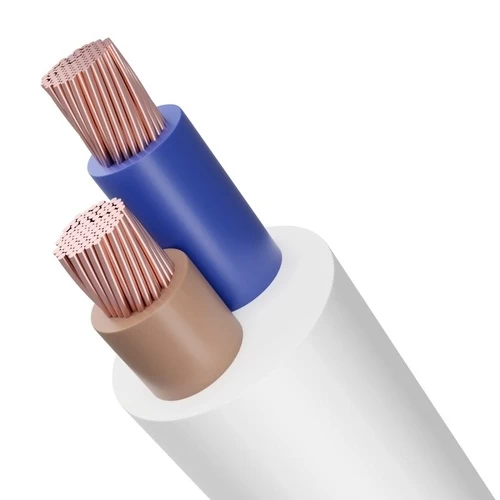

2 core flexible electrical copper cable (CU/PVC/PVC), 1.5 mm2 cross-sectional area, 300/500V, the first layer provides excellent electrical insulation, insulation color is brown and blue, produced by Riyadh Cables Company.

• Cable Type: H05VV-F
• Conductor: Flexible Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage Rating: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 1.5 mm
• Number of Wires: 28
• Wire Diameter: 0.25 mm
• Approx Conductor Diameter: 1.6 mm
• Insulation Thickness: 0.7 mm
• Sheath Thickness: 0.8 mm
• Overall Diameter: 8.6 mm
• Weight: 80 kg/km
• Max DC Conductor Resistance at 20°C: 13.3 ohm/km
• Packing: 100 meter
• Insulation Color: (Blue, Brown)
• Outer Sheath Color: White
• Standards: BS 6500, IEC 60227
