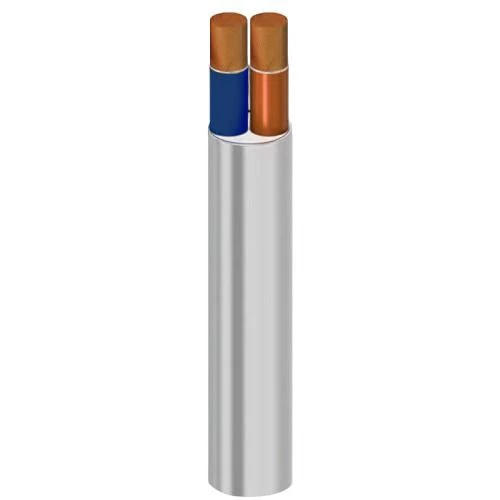

2.5mm Two Core Cable 300/500 volts, Flexible Copper Conductor, PVC Insulated and Sheathed | Alfanar

Cable 2.5 mm2 two core 300/500 volts, flexible copper conductor, PVC insulated and sheathed, insulation color (brown, blue), designed for use with mobile electrical units, including pumps and motors. ideal for applications requiring highly flexible cables, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed flexible copper conductor class 5 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-F)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of Wires: 50
• Wire Diameter: 0.25 mm
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1 mm
• Overall Diameter: 9.3 mm
• Weight: 145 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Brown, Blue)
• Standard: BS EN 50525-2-11
