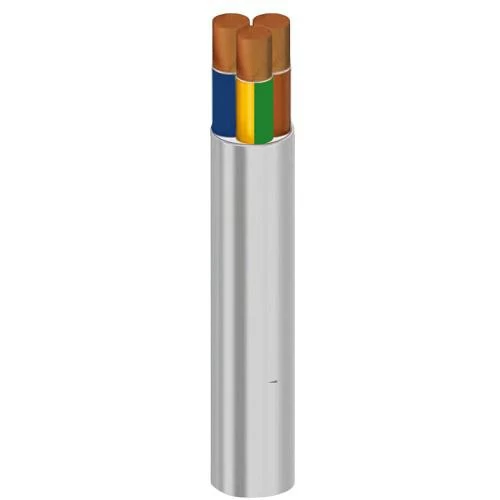

2.5mm Three Core Electric Cable 300/500 volts, Flexible Copper Conductor, PVC Insulated | Alfanar

Electric cable 2.5 mm2 three core 300/500 volts, flexible copper conductor, PVC insulation and sheath, insulation color (brown, blue, yellow/green), these cables are used in household appliances such as washing machines, refrigerators, and kitchen equipment, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed flexible copper conductor class 5 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-F)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of Wires: 50
• Wire Diameter: 0.25 mm
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.1 mm
• Overall Diameter: 10.1 mm
• Weight: 180 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Brown, Blue, Yellow/Green)
• Standard: BS EN 50525-2-11
