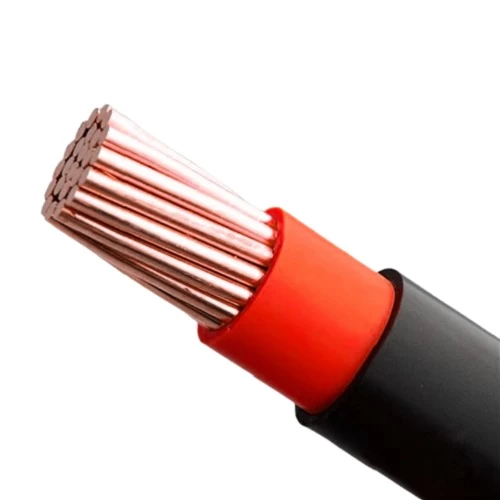

2.5mm 0.6/1kV Single Core Electrical Cable, Stranded Copper Conductor, PVC Insulation, Red Color, 1000 meter | BAHRA

Unarmored stranded copper power electrical cable (CU/PVC/PVC), single core electrical cable, 2.5mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, as PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 6.3 mm
• Weight:66 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Red
• Standard: IEC 60502-1
