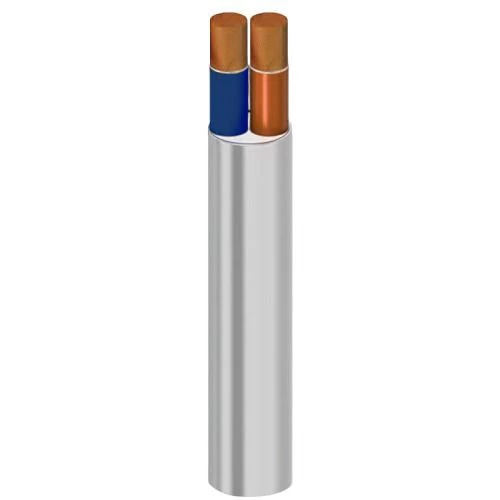

1mm 2 Core Electric Cable 300/500 volts, Flexible Copper Conductor, PVC Insulated and Sheathed | Alfanar

Electric cable 1 mm2 , 2 core 300/500 volts, flexible copper conductor, PVC insulated and sheathed, the insulation layer provides excellent electrical insulation phase core color (brown, blue), produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed flexible copper conductor class 5 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-F)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 1 mm2
• Number of Wires: 32
• Wire Diameter: 0.2 mm
• Nominal Insulation Thickness: 0.6 mm
• Nominal Sheath Thickness: 0.8 mm
• Overall Diameter: 6.7 mm
• Weight: 68 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Brown, Blue)
• Standard: BS EN 50525-2-11
