185 mm 3 Core Stranded Copper Cable 600/1000 V, PVC Insulated, (Red, Yellow, Blue) | Riyadh Cables

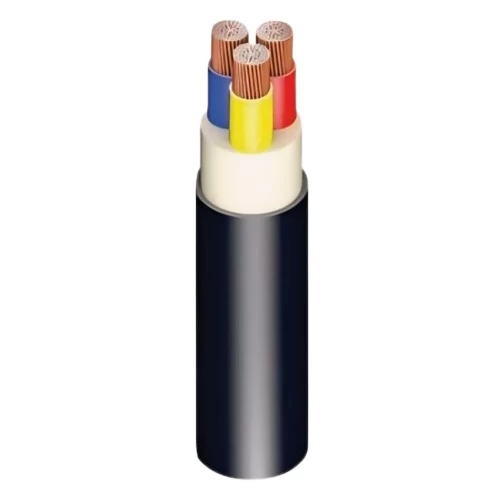

3 core electrical stranded copper cable (CU/PVC/PVC), weight 6750 kg/km, 3×185 mm2, low voltage 600/1000V, Features two insulated layers that provides protection for the cable from corrosion and external factors, (red, yellow, blue) color, Produced by Riyadh Cables Company.

• Insulation: PVC
• Sheath: PVC
• Voltage: 600/1000 volts
• Wire type: round stranded
• Number of Cores: 3
• Size (cross-sectional area): 185 mm2
• Number of wires: 37
• Approx conductor diameter: 17.36 mm
• Thickness of insulation layer: 2 mm
• Thickness of Sheath: 2.5 mm
• Approx overall diameter: 55 mm
• Weight: 6750 kg/km
• Length: 250 meters
• Color: (red, yellow, blue)
• Conformity according to international standard: IEC 60502-1
