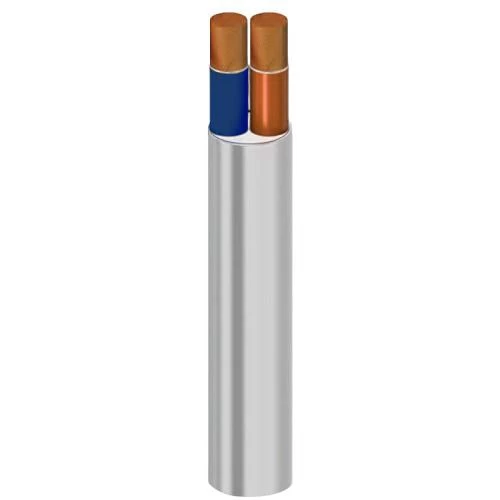

16mm Two Core Electric Cable 300/500 volts, Flexible Copper Conductor, PVC Insulated and Sheathed | Alfanar

Electric cable 16 mm2 two core 300/500 volts, flexible copper conductor, PVC insulated and sheathed, insulation color (brown, blue), designed for use with mobile electrical units, including pumps and motors, available in a variety of sizes and colors, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed flexible copper conductor class 5 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-F)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 16 mm2
• Number of Wires: 126
• Wire Diameter: 0.4 mm
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 17.3 mm
• Weight: 600 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Brown, Blue)
• Standard: BS EN 50525-2-11
