16mm Three Core Flat Electrical Cable, 300/500V, Stranded Copper PVC Insulation and Sheath | Riyadh Cables

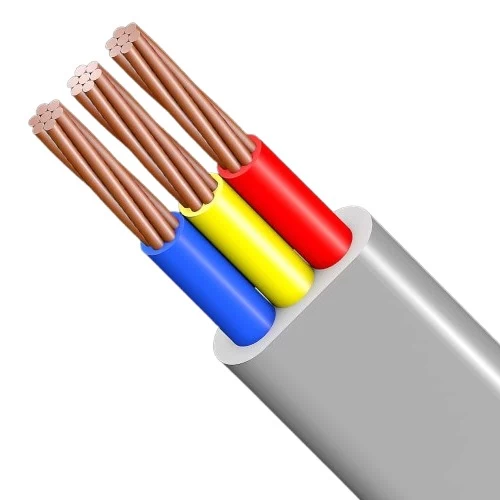

3 core stranded copper cable, 16 mm size conductor, 300/500 volts, PVC sheathed, insulation color is red, yellow and blue, produced by Riyadh Cables Company, according to the British standard BS 6004, which ensures its quality and performance, PVC insulated.

• Conductor: Copper
• Conductor Shape: Stranded as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 16 mm
• Number of Wires: 7
• Insulation Thickness: 1 mm
• Sheath Thickness: 1.3 mm
• Overall Diameter or Dimensions: Lower Limit 9 x 22 mm / Upper Limit 11 x 26.5 mm
• Max DC Conductor Resistance at 20°C: 1.15 ohm/km
• Weight: 690 kg/km
• Insulation Color: (Red, Yellow, Blue)
• Sheath Color: Gray
• Standard: BS 6004
