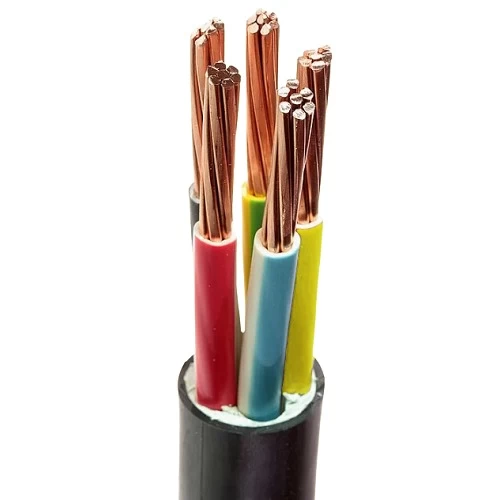

16mm 5 Core Electrical Cable 300/500V, Stranded Copper Conductor, PVC Insulated and Sheathed | Nohascom

Stranded copper electrical cable (CU/PVC/PVC), 5 core, 16mm2 cross-sectional area, low voltage 300/500V, Allows for easy installation in tight and curved spaces, corrosion resistant which extends the life of the cable and maintains its performance, red, yellow, blue, black, yellow/green, from Nohascom Company.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 5
• Conductor Size (Cross-Sectional Area): 16 mm2
• Number of Wires: 7
• Wire Diameter: 1.75 mm
• Nominal Insulation Thickness: 1
• Thickness of Inner Covering: 0.8 mm
• Nominal Sheath Thickness: 1.6 mm
• Overall Diameter: 22.5 mm
• Weight: 1150 kg/k
• Insulation Color: (Red, Yellow, Blue, Black, Yellow/Green)
• Standard: SASO IEC 60227-4
