16mm 0.6/1kV 1C Electrical Cable, Stranded Copper Conductor, PVC Insulation and Sheath, Brown Color, 1000 M Length | BAHRA

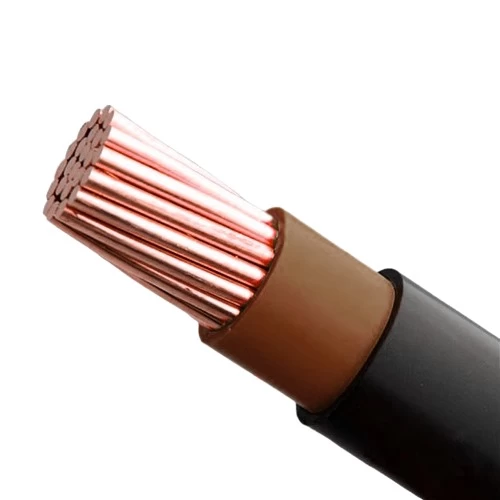

Unarmored stranded copper power cable (CU/PVC/PVC), 1C, 16mm2 size conductor, produced by BAHRA Cables company according to British standard (BS 5467), As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 16 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 9.9 mm
• Weight: 226 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Brown
• Standard: BS 5467 (A:2008)
