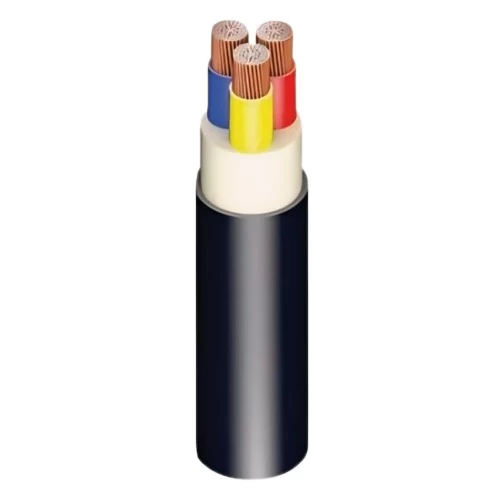

16 mm 3 Core Stranded Copper Cable 600/1000 V, PVC Insulated, (Red, Yellow, Blue) | Riyadh Cables

3 core electrical stranded copper cable (CU/PVC/PVC), 3×16 mm2, Features two insulated layers that provides protection for the cable from corrosion and external factors, Produced by Riyadh Cables Company, (red, yellow, blue) color.

• Insulation: PVC
• Sheath: PVC
• Voltage: 600/1000 volts
• Wire type: round stranded
• Number of Cores: 3
• Size (cross-sectional area): 16 mm2
• Number of wires: 7
• Approx conductor diameter: 5.03 mm
• Thickness of insulation layer: 1 mm
• Thickness of Sheath: 1.8 mm
• Approx overall diameter: 22 mm
• Weight: 875 kg/km
• Length: 1000 meters
• Color: (red, yellow, blue)
• Conformity according to international standard: IEC 60502-1
