16 mm 0.6/1kV Single Core Electrical Cable, Stranded Copper Conductor, PVC Insulation, Red Color, 2000 M Length | BAHRA

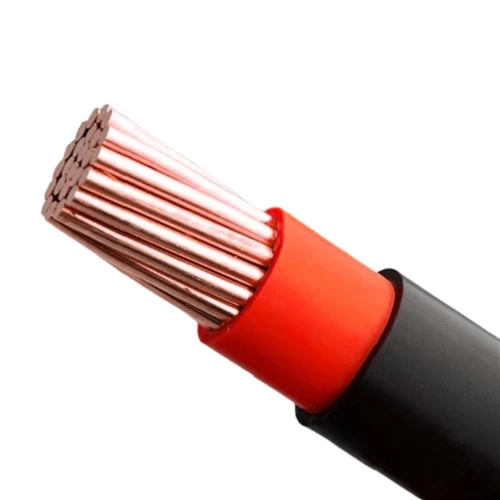

Unarmored stranded copper power electrical cable (CU/PVC/PVC), single core, 16mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, PVC cables are a widely used and effective choice for power transmission in various applications.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 16 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 9.9 mm
• Weight: 226 kg/km
• Standard Length: 2000 meters
• Phase Core Color: Red
• Standard: IEC 60502-1
