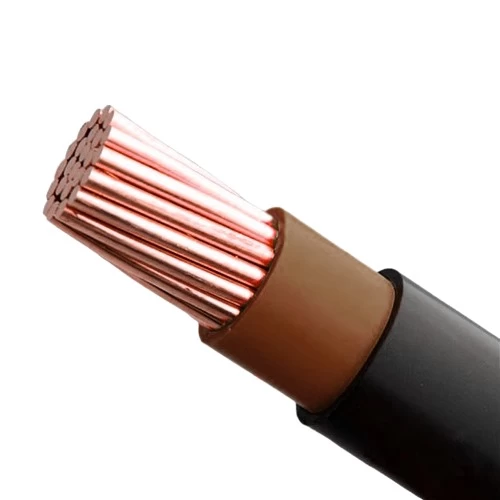

150mm 0.6/1kV Single Core Electric Cable, Stranded Copper Conductor, PVC Insulated and Sheathed, Brown Color, 1000 meter | BAHRA

Unarmored stranded copper Electrical Cable (CU/PVC/PVC), 1C, 150sq mm size Wire, produced by BAHRA Cables company according to British standard (BS 5467), the outer sheath provides additional protection for the cable, and is highly resistant to water and moisture.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 150 mm2
• Number of wires: 37
• Nominal Insulation Thickness: 1.8 mm
• Nominal Sheath Thickness: 1.6 mm
• Approx Overall Diameter: 22.3 mm
• Weight: 1582 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Brown
• Standard: BS 5467 (A:2008)
