150 mm 3 Core Stranded Copper Cable 600/1000 V, PVC Insulated, (Red, Yellow, Blue) | Riyadh Cables

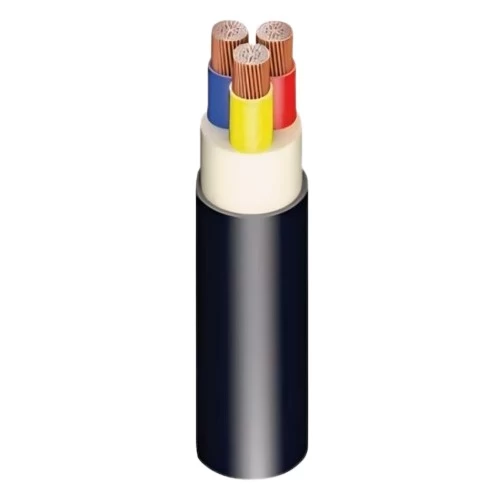

3 core electrical stranded copper cable (CU/PVC/PVC), number of wires 37, size 150 mm2, Insulated with two layers of high-quality PVC (polyvinyl chloride) material, Produced by Riyadh Cables Company, (red, yellow, blue) color.

• Insulation: PVC
• Sheath: PVC
• Voltage: 600/1000 volts
• Wire type: round stranded
• Number of Cores: 3
• Size (cross-sectional area): 150 mm2
• Number of wires: 37
• Approx conductor diameter: 15.47 mm
• Thickness of insulation layer: 1.8 mm
• Thickness of Sheath: 2.3 mm
• Approx overall diameter: 49 mm
• Weight: 5425 kg/km
• Length: 500 meters
• Color: (red, yellow, blue)
• Conformity according to international standard: IEC 60502-1
