120 mm 0.6/1kV Single Core Cable , Stranded Conductor, PVC Insulation and Sheath, Red Color, 1000 meter | BAHRA

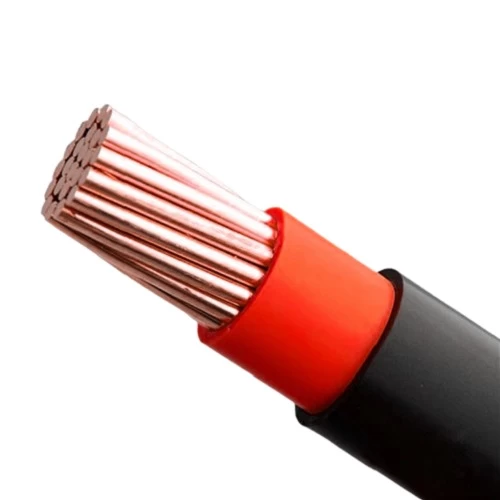

Unarmored stranded copper power cable (CU/PVC/PVC), single core,120mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, available in a variety of sizes and colors with the highest quality and best prices.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 120 mm2
• Number of wires: 37
• Nominal Insulation Thickness: 1.6 mm
• Nominal Sheath Thickness: 1.5 mm
• Approx Overall Diameter: 20.3 mm
• Weight: 1298 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Red
• Standard: IEC 60502-1
