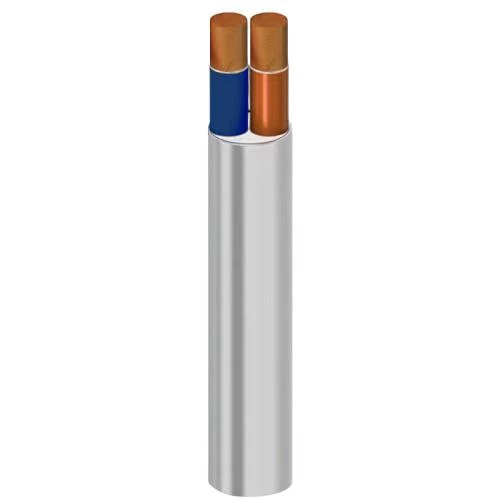

10sq mm 2 Core Cable 300/500 Rated Voltage, Flexible Copper Conductor, PVC Insulated and Sheathed | Alfanar

Flexible electrical copper cable 2 core (CU/PVC/PVC), 10 mm2 cross-sectional area, low voltage 300/500V, insulation color (brown, blue),the polyvinyl chloride (PVC) insulation material provides excellent electrical insulation, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed flexible copper conductor class 5 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-F)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of Wires: 80
• Wire Diameter: 0.4 mm
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 15.2 mm
• Weight: 430 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Brown, Blue)
• Standard: BS EN 50525-2-11
