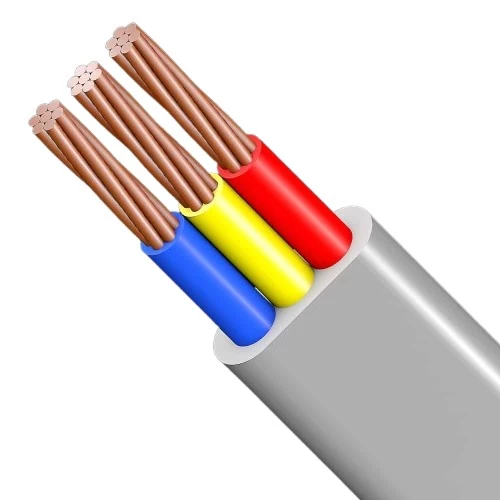

10mm2 , 3 Core Flat Electric Cable, 300/500 Voltage Rating, Stranded Copper PVC Insulation and Sheath | Riyadh Cables

Three core stranded copper cable, 10 mm size conductor, 300/500 volts, the first layer provides excellent electrical insulation, its flat shape makes it ideal for installation in tight spaces, PVC insulated, PVC sheathed, insulation color is brown, black and gray, produced by Riyadh Cables Company.

• Conductor: Copper
• Conductor Shape: Stranded as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 10 mm
• Number of Wires: 7
• Insulation Thickness: 1 mm
• Sheath Thickness: 1.2 mm
• Overall Diameter or Dimensions: Lower Limit 7.8 x 19 mm / Upper Limit 9.6 x 22.5 mm
• Max DC Conductor Resistance at 20°C: 1.83 ohm/km
• Weight: 475 kg/km
• Insulation Color: (Brown, Black, Gray)
• Sheath Color: Gray
• Standard: BS 6004
