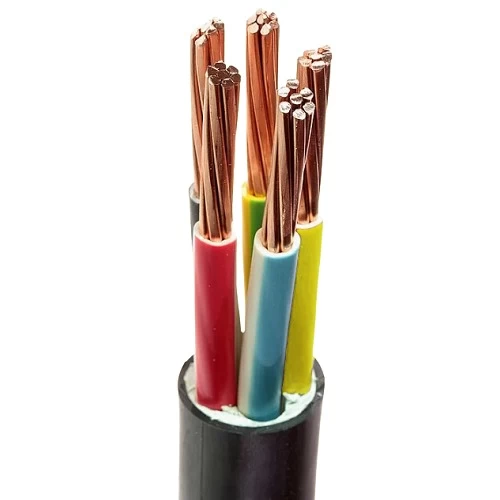

10mm Five Core Electrical Cable 300/500V, Stranded Copper Conductor, PVC Insulation and Sheath | Nohascom

Stranded copper electrical cable (CU/PVC/PVC), 5 core, 10mm2 cross-sectional area, low voltage 300/500V, Copper ensures the purity of electrical current conduction with high efficiency, red, yellow, blue, black, yellow/green, from Nohascom Company.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 5
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of Wires: 7
• Wire Diameter: 1.34 mm
• Nominal Insulation Thickness: 1
• Thickness of Inner Covering: 0.6 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 19 mm
• Weight: 760 kg/k
• Insulation Color: (Red, Yellow, Blue, Black, Yellow/Green)
• Standard: SASO IEC 60227-4
