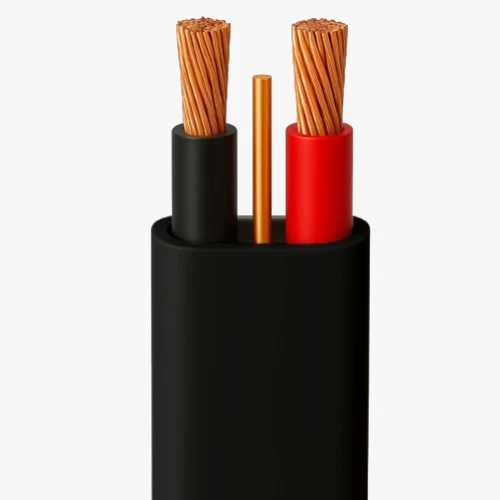

10 sq mm Two Core Stranded Copper Flat Cable with Earth Conductor, 300/500V, PVC 85°C, Black Color, 2000 meter | Saudi Cable Company

Stranded copper electrical flat cable with earth conductor (CU/PVC/PVC), 10mm, 85°C insulation, black sheath, 2000m length, low voltage 300/500V. Produced by Saudi Cable Company (SCC). PVC insulation provides excellent electrical protection, and the sheath offers high resistance to corrosion. Suitable for outdoor applications.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 10mm2
• Number of Wires: 7
• Earth Continuity Conductor (no.xmm): 7×0.84 mm
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.2 mm
• Overall Diameter: 19.0×9.6mm
• Weight: 371 kg/km
• Length: 2000 meter / Coil
• Insulation Color: (Red, Black)
• Sheath Color: Black
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CGG2-08H
