10 sq mm 2 Core Stranded Copper Electric Cable 300/500V, PVC 70°C Insulation, Black Color, Length 2000 M | Saudi Cable Company

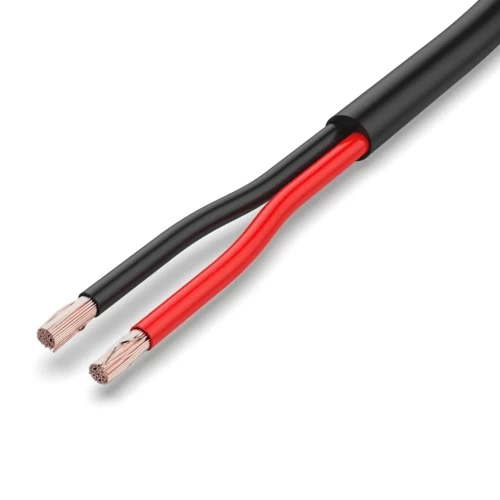

Stranded copper electric cable (CU/PVC/PVC), 2 core, 10 sq mm, 300/500V, black sheath, insulated with PVC 70°C. Produced by Saudi Cable Company. Perfect for industrial and residential fixed wiring, with excellent resistance to corrosion and external elements.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 10mm2
• Number of Wires: 7
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 16.4 mm
• Weight: 437 kg/km
• Length: 2000 meter / Coil
• Insulation Color: (Red, Black)
• Sheath Color: Black
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CBH2-08H
