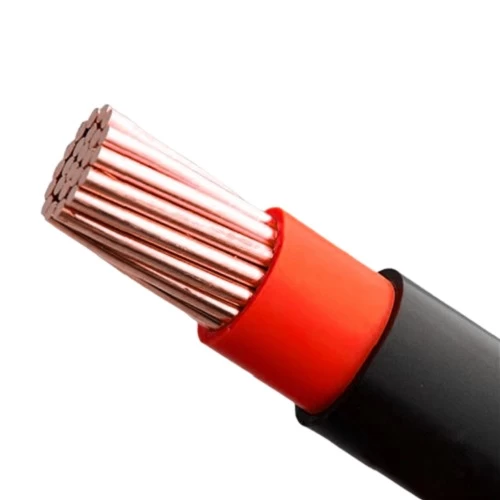

10 mm 0.6/1kV Single Core Cable, Stranded Copper Conductor, PVC Insulated, Red Color, 1000 meter | BAHRA

Unarmored stranded copper power electrical cable (CU/PVC/PVC), single core, 10mm2 size conductor, 0.6/1kV, produced by BAHRA cables company, PVC cables are a widely used and effective choice for power transmission and is highly resistant to water and moisture.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 8.8 mm
• Weight: 165 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Red
• Standard: IEC 60502-1
