1.5sq mm 3 Core Cable 300/500V, Stranded Copper PVC Insulated | Alfanar

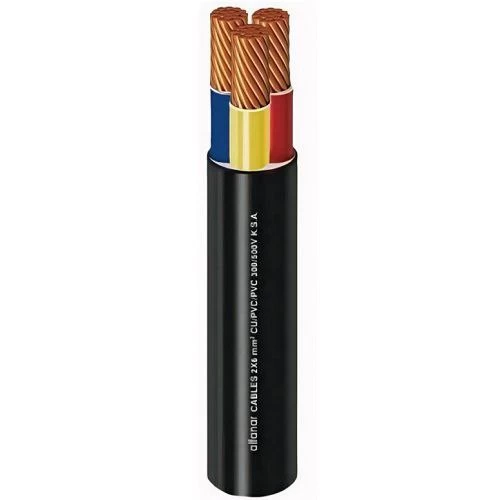

Stranded electrical copper cable three core (CU/PVC/PVC), 1.5 mm2 size, low voltage 300/500V, insulation color (red, yellow, blue), insulated and sheathed with high-quality polyvinyl chloride (PVC), produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed stranded copper conductor class 2 as per IEC 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-R)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 1.5 mm2
• Number of Wires: 7
• Wire Diameter: 0.52 mm
• Nominal Insulation Thickness: 0.7 mm
• Thickness of Inner Covering: 0.4 mm
• Nominal Sheath Thickness: 1.2 mm
• Overall Diameter: 9.6 mm
• Weight: 145 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Red, Yellow, Blue)
• Standard: IEC 60227-4
