1.5mm 5 Core Cable 300/500V, Stranded Copper Conductor, PVC Insulation and Sheath | Nohascom

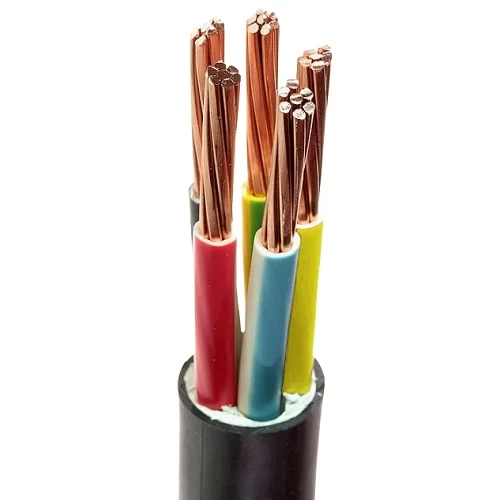

Stranded copper electrical cable (CU/PVC/PVC), 5 core, 1.5mm2 cross-sectional area, low voltage 300/500V, Provides excellent protection against a wide range of chemicals and acids, making it suitable for use in harsh industrial environments, from Nohascom Company, Red, Yellow, Blue, Black, Yellow/Green.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 5
• Conductor Size (Cross-Sectional Area): 1.5 mm2
• Number of Wires: 7
• Wire Diameter: 0.54 mm
• Nominal Insulation Thickness: 0.7
• Thickness of Inner Covering: 0.4 mm
• Nominal Sheath Thickness: 1.2 mm
• Overall Diameter: 10.8 mm
• Weight: 210 kg/k
• Insulation Color: (Red, Yellow, Blue, Black, Yellow/Green)
• Standard: SASO IEC 60227-4
