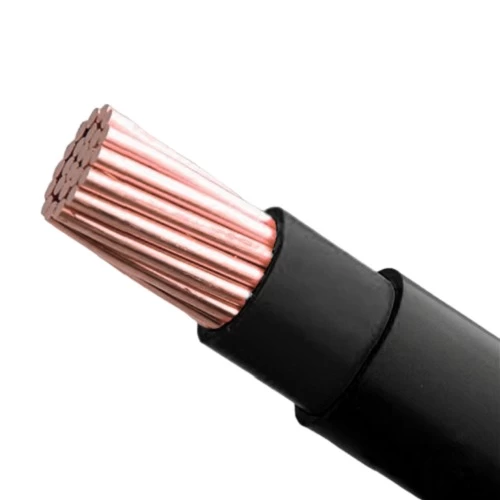

1.5mm 0.6/1kV Single Core Cable, Stranded Copper Conductor, PVC Insulation, Black Color, 1000 meter | BAHRA

Unarmored stranded copper power cable (CU/PVC/PVC), single core, 1.5mm2 size conductor, 0.6/1kV, produced by BAHRA Cables company, they are distinguished by their economical cost, reliable performance, and durability, as PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 1.5 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 5.9 mm
• Weight: 53 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Black
• Standard: IEC 60502-1
